KLDC travelling hoist for big bags

Extended hook lead-off

Demag KLDC travelling hoist for big bags: Extended hook lead-off and maximum lifting height

The combination of long load bars and a low lifting height can cause problems in some applications. KLDC travelling hoists for big bags combine the maximum lifting height of a Demag KDC low-headroom travelling hoist with an extended hook lead-off, which enables the load to be lifted to the highest hook position. This results in maximum utilisation of the C dimension for handling loads weighing up to 2,000 kg.

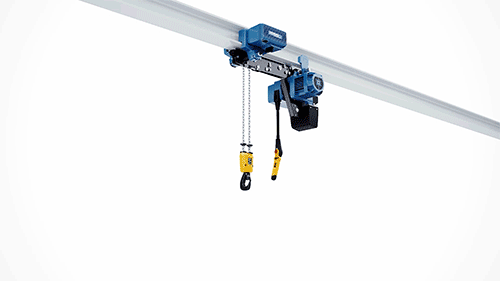

08_KLDC_EN



Convenient load handling of bulky goods

Together with the modular Demag KBK light crane system, this creates a winning combination for the convenient handling also of bulky loads. KLDC travelling hoists for big bags are equipped with operating limit switches for the highest and lowest hook position and can be operated with 2-stage as well as variable lifting and travel speeds.

Durable components for uncompromising cost-efficiency

The components installed in the DC chain hoist range feature reliability and a long service life. The generously specified gearbox allows for FEM classification up to 4m and, therefore, 6,300 hours of operation for demanding applications.

Product information

Customer benefits at a glance

Safety

Safety

  • Low-voltage control pendant thanks to 24 V contactor control system
  • Safety-related functions satisfy at least Performance Level c and Category 2 to EN ISO 13849-1
Minimum load sway

Minimum load sway

  • Smooth cross-travel starting and braking motions for low-sway load handling
  • Speeds and acceleration/braking rates can be modified by means of the control pendant, if required
Long service life

Long service life

  • Generously specified gearbox. 2m+ (1,900 hours) for main load capacities and up to 4m (6,300 hours) for demanding applications
  • All sub-assemblies of the chain hoist are rated for a long service life, even under the most demanding conditions
Temperature range

Temperature range

  • Reliable operation from -20 °C to +45 °C without any reduction in the duty factor
  • Operation also possible up to 60 °C and more
Ergonomics

Ergonomics

  • Length of control cable or position of control pendant can be adjusted without the need for any wiring
  • Length of control cable that is not needed can be stored under the service cover
High performance monitor

High-performance motor

  • Hoist motor has large safety reserves to provide for reliable operation for many years
  • Can be used for switching cycles way beyond usual market levels
Pro Hub function

Pro-Hub function

  • Up to 90% higher rated lifting speed in reduced load range
Easy to service

Easy to service

  • Gearbox & slipping clutch maintenance-free for up to 10 years
  • Brake maintenance-free for up to 10 years (up to 5 years for DC 10–25)
  • Simple and rapid maintenance and repair of individual components thanks to the modular chain hoist design – cuts any downtime to a minimum
Variable speeds

Variable speeds

  • Valuable and sensitive parts can be moved and positioned more smoothly and reliably
  • Variable button characteristic like a car accelerator pedal
Status display

Status display

  • Display for elapsed operating time counter and operating statuses
  • Always up-to-date for service purposes
Slipping clutch monitoring

Slipping clutch monitoring

  • Harmful continuous slipping eliminated thanks to speed monitoring
  • Reliable protection against extreme overload
  • Load securely held in any operating situation and cannot drop while hoist is at standstill, since brake is arranged in front of the slipping clutch in load-bearing arrangement
Low noise level

Low noise level

  • Reduced operating noise thanks to helical gearing in all gearbox stages
  • Smooth running characteristics thanks to high-quality gearing
