DCMS-Pro Manulift

For careful handling

DCMS-Pro Manulift

DCMS-Pro Manulift

Single-handed operation

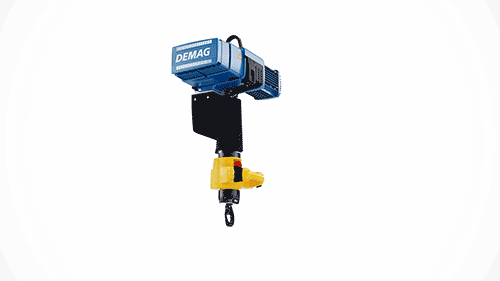

Our DCMS-Pro Manulift combines fast and reliable load handling with variable speed control and operation with only one hand. It is based on the lifting unit of our DCS-Pro chain hoist and our DSM-CS control unit. The wide range of performance offered by the DCMS-Pro:

  • chain hoist operation and load handling with one hand
  • safe, reliable and precise positioning of sensitive goods and valuable products thanks to variable speed control
  • fast lifting motions at almost double the rated speed in the partial load range
  • quick-change coupling for a reliable hold
  • simple replacement of the load handling attachment
  • suitable for right-hand and left-hand operation.

Your Contact

Demag contact

Demag Cranes & Components GmbH

Postfach 67
58286 Wetter
Germany

Phone:
+49 (0) 2335 92-0
Fax:
+49 (0) 2335 92-7676

The benefits at a glance

In comparison with the proven DCM-Pro with two lifting speeds, the DCMS-Pro offers you further benefits.

Maximum ease of operation

  • Infinitely variable speed control for lifting and lowering motions over the entire load range
  • Exceptionally fine control at slow speed
  • Smooth starting and exact positioning
  • Creep lifting speed from 0.15 m/min
  • Lifting speed, acceleration and braking ramp can be simply modified via the control unit
  • Suitable for right-hand and left-hand operation

Versatile performance

  • The various Manulift load handling attachments can be changed with ease
  • Pro-Hub function for up to 90 per cent higher nominal speed for partial load or no-load operations
  • Automatic switchover to creep lifting speed before the upper/lower limit positions are reached – speed ratio 1:100

High safety and reliability

  • Motor temperature monitoring device
  • Acceleration and braking ramps to reduce load sway

Technical data

DCMS-Pro Manulift (variable lifting speed)

Load
Capacity
[kg]

Manulift
type

DCMS-Pro
Lifting speed
at 50/60 HZ
[m/min]

Hook path
[m]

FEM Reev-
ing
Weight [kg]
for
hook path
VSrated VS max 2.8m 4.3m
80 1 0.15-30 30 2.8 and 4.3 4m 1/1 25 27
125 1 0.15-30 4m
200 2 0.15-16 3m
250 2 0.15-16 2m+*)

 *) 2m+ corresponds to 1,900 hours at full load

DCRS-Pro rocker switch (variable lifting speed)

Load
Capacity
[kg]

Manulift
type

DCRS-Pro
Lifting speed
at 50/60 HZ
[m/min]

Hook path
[m]

FEM Reev-
ing
Weight [kg]
for
hook path
VSrated VS max 2.8m 4.3m
80 1 0.15-30 30 2.8 and 4.3 4m 1/1 25 27
125 1 0.15-30 4m
200 2 0.15-16 3m
250 2 0.15-16 2m+*)

 *) 2m+ corresponds to 1,900 hours at full load

Customer benefits at glance

Safety

Safety

  • Low-voltage control pendant thanks to 24 V contactor control system
  • Safety-related functions satisfy at least Performance Level c and Category 2 to EN ISO 13849-1
Minimum load sway

Minimum load sway

  • Smooth cross-travel starting and braking motions for low-sway load handling
  • Speeds and acceleration/braking rates can be modified by means of the control pendant, if required
Long service life

Long service life

  • Generously specified gearbox. 2m+ (1,900 hours) for main load capacities and up to 4m (6,300 hours) for demanding applications
  • All sub-assemblies of the chain hoist are rated for a long service life, even under the most demanding conditions
Temperature range

Temperature range

  • Reliable operation from -20 °C to +45 °C without any reduction in the duty factor
  • Operation also possible up to 60 °C and more
Ergonomics

Ergonomics

  • Length of control cable or position of control pendant can be adjusted without the need for any wiring
  • Length of control cable that is not needed can be stored under the service cover
High performance monitor

High-performance motor

  • Hoist motor has large safety reserves to provide for reliable operation for many years
  • Can be used for switching cycles way beyond usual market levels
Pro Hub function

Pro-Hub function

  • Up to 90% higher rated lifting speed in reduced load range
Easy to service

Easy to service

  • Gearbox & slipping clutch maintenance-free for up to 10 years
  • Brake maintenance-free for up to 10 years (up to 5 years for DC 10–25)
  • Simple and rapid maintenance and repair of individual components thanks to the modular chain hoist design – cuts any downtime to a minimum
Variable speeds

Variable speeds

  • Valuable and sensitive parts can be moved and positioned more smoothly and reliably
  • Variable button characteristic like a car accelerator pedal
Status display

Status display

  • Display for elapsed operating time counter and operating statuses
  • Always up-to-date for service purposes
Slipping clutch monitoring

Slipping clutch monitoring

  • Harmful continuous slipping eliminated thanks to speed monitoring
  • Reliable protection against extreme overload
  • Load securely held in any operating situation and cannot drop while hoist is at standstill, since brake is arranged in front of the slipping clutch in load-bearing arrangement
Low noise level

Low noise level

  • Reduced operating noise thanks to helical gearing in all gearbox stages
  • Smooth running characteristics thanks to high-quality gearing
